AAC Aluminium Conductor Cable XLPE/PVC/STA Medium Voltage Power Cable 8.7 15kV
APPLICATION
Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.

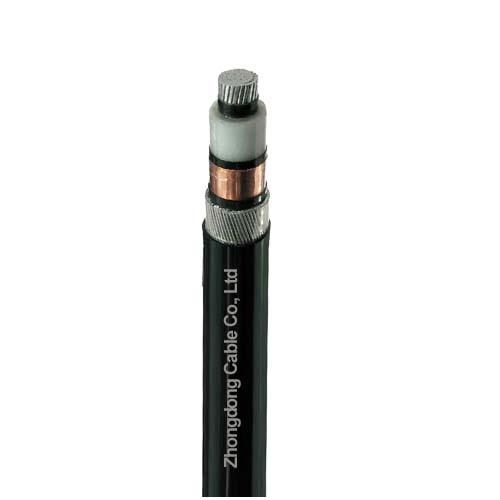

CONSTRUCTION
Conductor: Round compacted conductors
Conductor Shield:
Semi conductive shielding material (below 500mm)
Semi conductive tape+semi conductive shielding material (500mm and above)
Insulation: Polyvinyl chloride (PVC)
Insulation Shield: Peelable semiconducting shielding material
Metal Shield Layer: Copper Tape Copper Wire(35kV 500mm bove)
Filler: Polypropylene(PP) mesh filling rope
Binder Tape: Non hygroscopic straps
Armouring: Steel Tape(Single core)
Outer sheath: 90℃ Polyvinyl chloride (PVC)
STANDARD
GB/T31840.2-2015, GB/T 31840.3-2015
SPECIFICATION
| Specs
mm² | Conductor diameter
mm | Outer thickness of insulation
±1.0mm | Approx outer diameter of cable
mm | Approx cable weight
kg/km |
| 1×25 | 6.0±0.1 | 17.6 | 25.1 | 786 |
| 1×35 | 6.6±0.2 | 18.2 | 25.9 | 857 |
| 1×50 | 7.6±0.2 | 19.2 | 26.9 | 954 |
| 1×70 | 9.2±0.2 | 20.8 | 28.6 | 1085 |
| 1×95 | 10.9±0.2 | 22.5 | 30.3 | 1218 |
| 1×120 | 12.2±0.2 | 23.8 | 31.8 | 1356 |
| 1×150 | 13.6±0.2 | 25.2 | 332 | 1494 |
| 1×185 | 15.2±0.2 | 26.8 | 36.3 | 1679 |
| 1×240 | 17.4±0.2 | 29.0 | 38.6 | 2291 |
| 1×300 | 19.5±0.2 | 31.1 | 40.9 | 2581 |
| 1×400 | 22.0±0.2 | 33.6 | 43.8 | 3036 |
| 1×500 | 24.8±0.2 | 37.2 | 47.7 | 3558 |
| 1×630 | 28.2±0.2 | 40.6 | 51.3 | 4130 |
| 1×800 | 34.0±0.2 | 46.4 | 57.4 | 4968 |

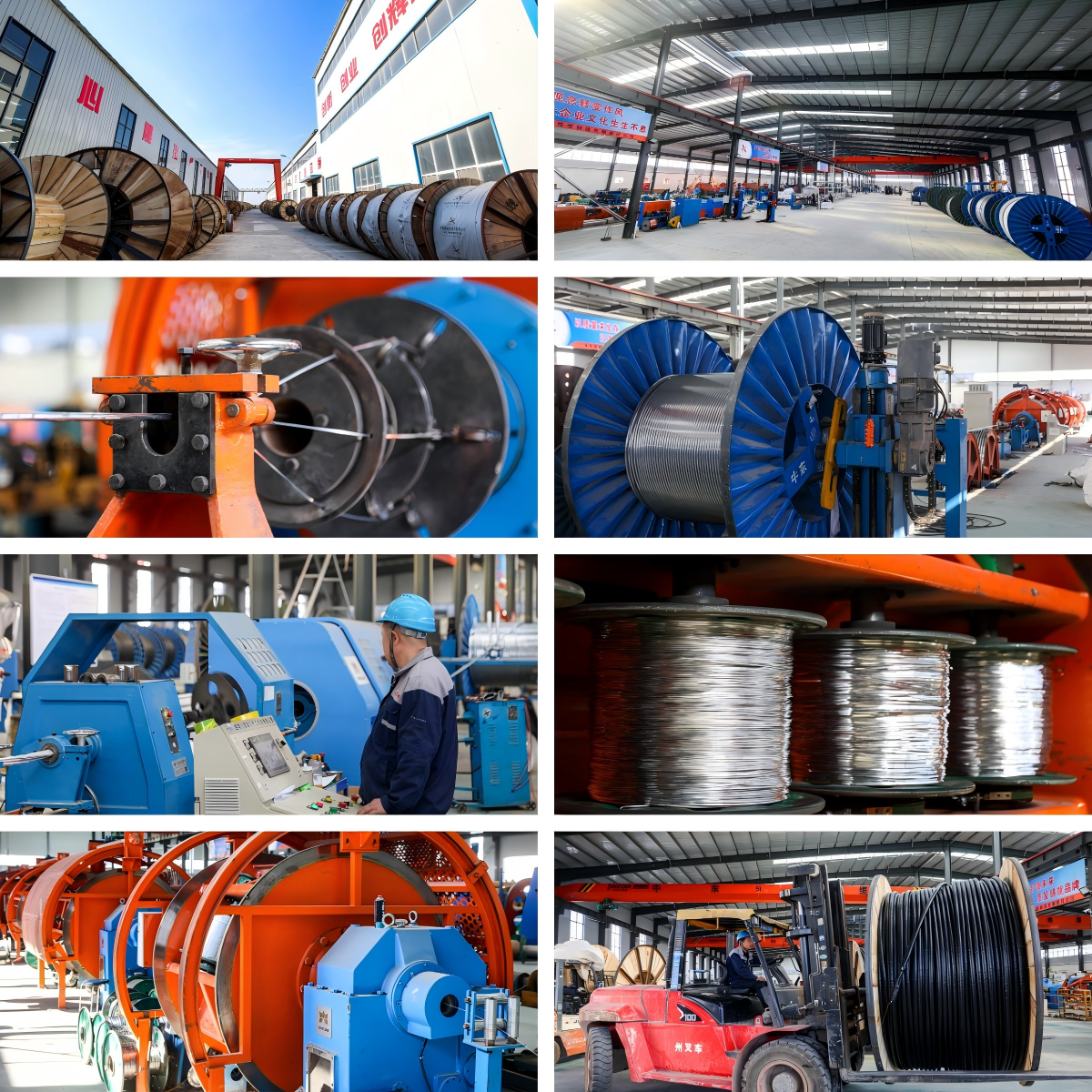

FACTORY

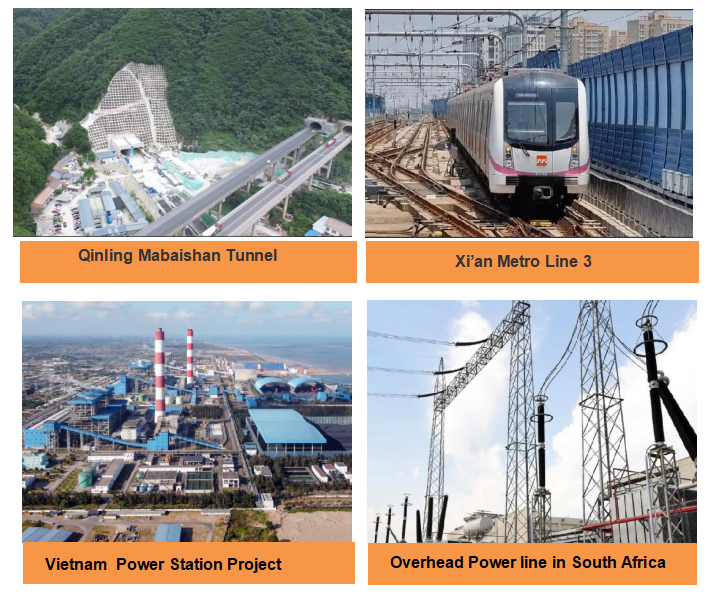

PROJECTS
FAQ
Q1. How can I place order?
A: You can contact us by email about your order details, or place order online.
Q2. Does your company provide OEM&ODM services?
A: Yes, we could accept OEM & ODM service, contact us now!
Q3. Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q4: Are you manufacturer or trading company?
A: We are the cable manufactuere for more than 20 years.
Q5: Can you offer a discount on cables?
--Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q6: Can you offer free samples?
--Of course, according to your order quantity, we'd like to provide free sample.
|
|
AAC Aluminium Conductor Cable XLPE/PVC/STA Medium Voltage Power Cable 8.7 15kV Images
|
